DÜCHTING PUMPEN Maschinenfabrik GmbH & Co. KG
Booth number: 1C322
www.duechting.com/
About us
DÜCHTING PUMPEN is a third-generation, family-owned company based in Germany’s Ruhr Area. For over 85 years, we have developed advanced centrifugal pump solutions for desalination, flue gas desulfurization, mining, and chemical industries. Renowned for quality, innovation, and reliability, our company is a trusted partner for clients worldwide.
Address
Wilhelm-Düchting-Straße 22
58453 Witten
Germany
E-mail: info@duechting.com
Phone: +49 2302 969-0
Internet: www.duechting.com/
Contact person:
Jacob Goschütz
Sales & Project Manager Iberoamerica
E-mail: jacob.goschuetz@duechting.com
Phone: +49 2302 969153
Products & Services

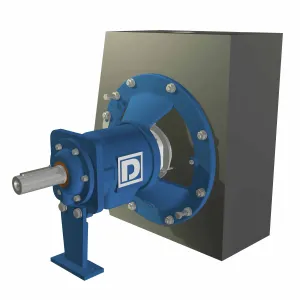

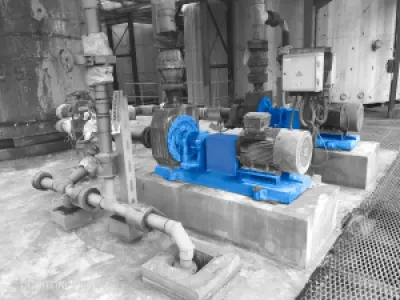

Mineral Cast Pumps
Single-stage centrifugal pumps for handling of abrasive and corrosive liquids
All components in contact with the liquid are made of SICcast, a non-metallic mineral cast material made of silicon carbide.
(SICcast EP135 consists of silicon carbide and epoxy resin, forming a metal-free, non-magnetic, noise- and vibration-reducing material with diamond-like hardness)Vertical and submersible option available
Technical data MC:
Max. Pump Size: DN 300 (12“)
Max. Pressure: 16 bar (230 PSI)
Max. Flow: 1500 m³/h (6600 gpm)
Max. Head: 90 m (395 ft)
Max. Rotating Speed: 3600 rpm
Technical data MCC:
Max. Pump Size: DN 1000 (40“)
Max. Pressure: 6 bar (90 PSI)
Max. Flow: 20000 m³/h (88000 gpm)
Max. Head: 40 m (131 ft)
Max. Rotating Speed: 1200 rpm

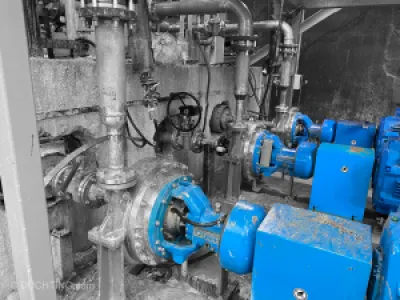

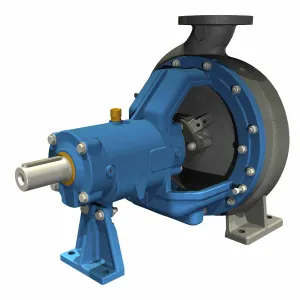

Wear Resistant Metal Pumps
Highly wear and chemical resistant pump for handling of highly abrasive and corrosive liquids with fine to very coarse solids
Grain size up to 240 mm
Mobile dewatering unit available
Vertical and submersible option available
Technical Data WR:
Max. Pump Size: DN 800 (32“)
Max. Pressure: 16 bar (230 PSI)
Max. Flow: 12000 m³/h (52800 gpm)
Max. Head: 120 m (394 ft)
Max. Rotating Speed: 3600 rpm
Technical Data WRX:
Max. Pump Size: DN 700 (28“)
Max. Pressure: 16 bar (230 PSI)
Max. Flow: 9000 m³/h (39600 gpm)
Max. Head: 90 m (295 ft)
Max. Rotating Speed: 1200 rpm
_real_voll-(306634)_-thumb.webp)

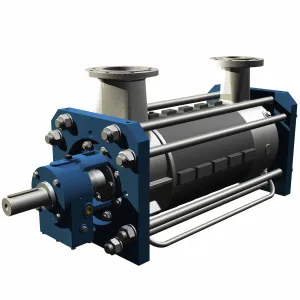

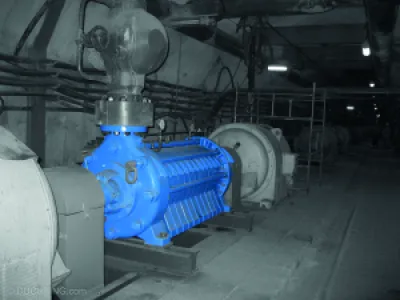

High-Pressure Pumps
Multistage centrifugal pump in ring-section design for handling of chemically neutral or corrosive liquids with up to 15 % solids
Technical Data:
Max. Pump Size: DN 300 (12“)
Max. Pressure: 250 bar (3630 PSI)
Max. Flow: 2000 m³/h (8800 gpm)
Max. Head: 2200 m (7218 ft)
Max. Rotating speed: 3600 rpm
_real_voll_2-(304651)_-thumb.webp)

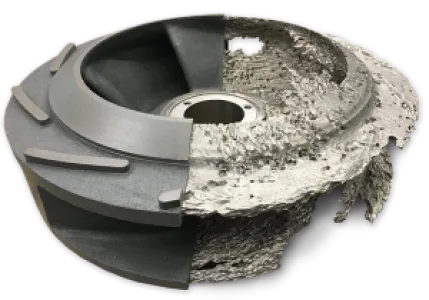

SIConit – Coating Material
SIConit is a silicon carbide composite material designed for the repair and protection of surfaces exposed to erosion, abrasion and corrosion caused by aggressive liquids or slurries containing solids, across the full pH range of 0 to 14.
High Wear Resistance
Due to its significant silicon carbide content of > 80 %, SIConit offers exceptional resistance to wear, making it suitable for environments where surfaces are subject to high erosion and abrasion.
Chemical Resistance
SIConit maintains its integrity in chemically aggressive environments with pH values ranging from 0 to 14, ensuring durability in various industrial applications.
Temperature Tolerance
The material can withstand temperatures up to 100°C, allowing for use in processes involving elevated temperatures.
